'Eye-opening'
ParaLink® in-rack & in-box solutions
- with suck-out free frequency ranges up to 60 GHz and beyond
- with industry-leading AWG/pair dimension ratio
- with optimized transmission characteristics by unique skin-foam-skin technology
- as optimum solutions for Next Gen cabling systems

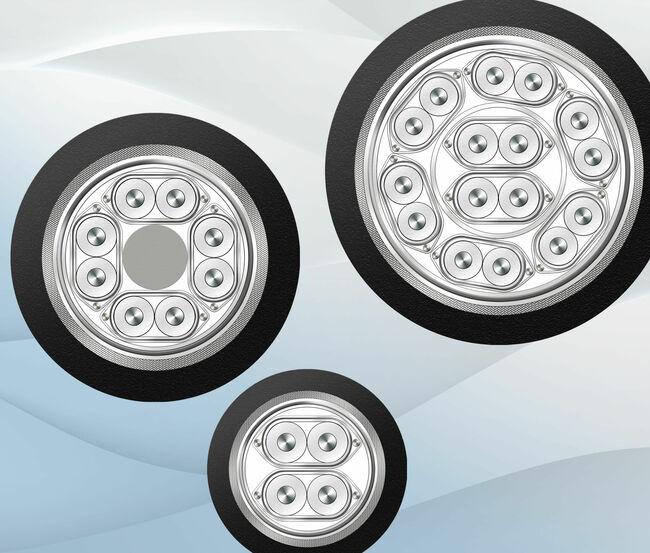

New: ParaLink® for 224 Gbit/s
ParaLink underlines future-proof data transmission over copper again. Our latest twinaxial ParaLink high speed cables achieve best-in-class SI performance for up to 224 Gbit/s per pair. Our new ParaLink cables are ready to boost your speed in data centers.
- suck-out free performance up to 60+ GHz
- optimum solution for 224 Gbit/s per lane transmission
- for Terabit applications
- supporting higher PAM modulations
- industry-leading AWG/pair dimension ratio
- dual drain pair design & superior inner-skin-technology to boost SI performance
Configuration options:
- available with halogen free and flame retardant outer jacket (LSZH)
- available as 1, 2, 4 and 8 pair configuration
- available in AWG 30 to 26
- different jacket color options

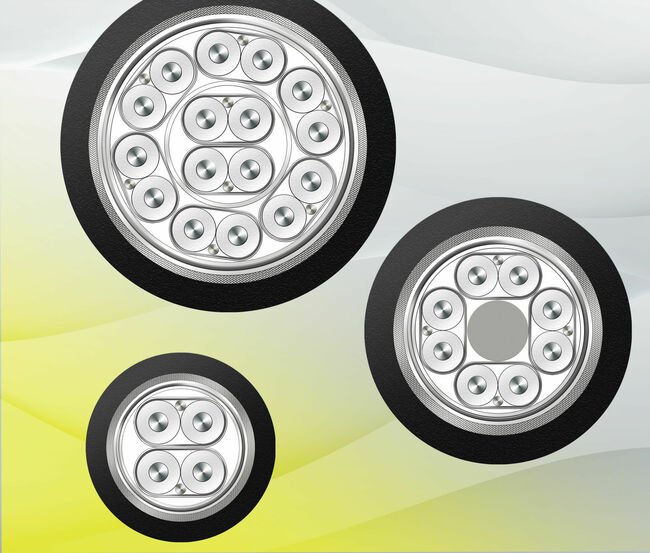

ParaLink® 42s for 112 Gbit/s
ParaLink 42s twinax high speed cables transmit up to 112 Gbit/s per channel in high frequency ranges up to 56 GHz. Enhanced pair design with an additional skin over each pair leads to consequent signal integrity optimization. ParaLink 42s cables are the key to high speed NRZ or PAM4 data transmission with industry leading thin outer diameters and long link lengths.
- suck-out free performance up to 56 GHz
- optimized transmission characteristics by unique skin-foam-skin technology
- excellent NEXT performance
- optimal solution for Next Gen cabling systems, e.g. suggested for 56 GB NRZ and 112 GB PAM4 per channel application
- dual drain pair design & superior inner-skin technology to boost SI performance
Configuration options:
- available with halogen free and flame retardant outer jacket (LSZH)
- available as 1, 2, 4 and 8 pair configuration
- available in AWG 30 to 26
- different jacket color options
ParaLink® 25s for 56 Gbit/s
The enhanced ParaLink 25s is suitable for transmissions up to 56 Gbit/s per channel in the frequency range of 20 GHz+. An additional skin over each pair leads to consequent signal integrity optimization. Thus, thinner outer diameters and longer transmission lengths may be realized.
- swept performance up to 26 GHz
- optimized transmission characteristics by unique skin-foam-skin technology
- excellent NEXT performance
- suggested for IEEE 100 Gb/s Ethernet (25 Gbit/s per channel) or IEEE 200 and 400 Gb/s Ethernet (56 Gbit/s per channel) and Infiniband EDR
- dual drain pair design & superior inner-skin technology to boost SI performance
Configuration options:
- also available as “no drain”-version with optimized outer diameter
- available with halogen free and flame retardant outer jacket (LSZH)
- available as 1, 2, 4 and 8 pair configuration
- available in AWG 30 to 26
- different jacket color options
ParaLink® 11+ for 10 Gbit/s
- swept performance up to 10 GHz
- spiral wrapped pair shielding
- optimized insertion loss variation (ILV) of +/– 5 %
- suggested for IEEE 40 Gb Ethernet (4 x 10 Gb/s) and Infiniband QDR
- proven center drain design
Configuration options:
- available AWG 32 pair design, enabling small outer diameter and bending radius
- available as single pair cables in 100, 90 and 85 Ohm
- available with halogen free and flame retardant outer jacket (LSZH)
- available as 1, 2, 4 and 12 pair configuration
- available in AWG 32 to 24
- different jacket color options
