Hybrid cables

Multifunctional cables for mobile networks with FttA

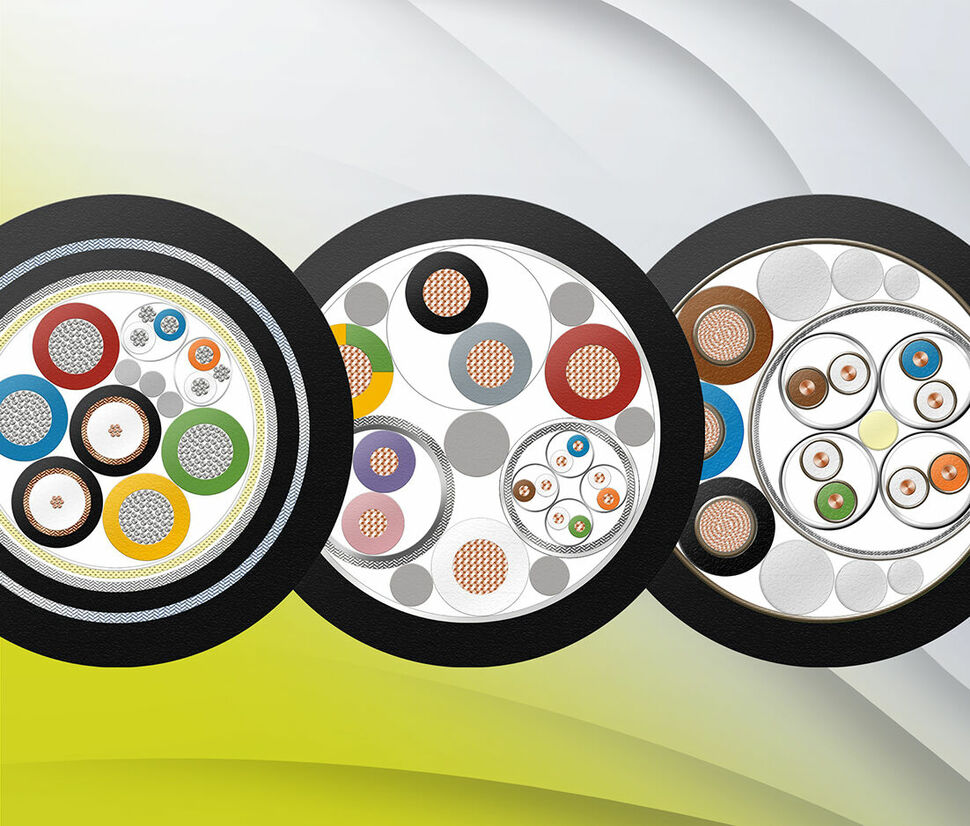

We can combine different cable elements such as copper wires, fiber optics, shielded pairs, coaxial cables and tubes in hybrid cable constructions. Thus, the supply of data, signals, power and even media can be effected via one single robust cable. Space requirement and installation time of the cabling can be reduced for indoor and outdoor units.

Next to many fiber opticpowerdata and jumper cables for mobile networks, Fiber to the Antenna (FttA) and other applications, we offer different hybrid solutions especially developed for Remote Radio installations. These are robust and weatherproof connections of the Remote Radio Head (RRH) at the top of a mobile phone mast with the base station. Data transfer is achieved by using fiber optic cables or twisted-pair copper cables in line with the IEEE 802.16 WiMax standard. High-performance power cables ensure the power supply.

The fiber optic solution displayed here enables power and data transmission without interference over an installation length of over 100 m (328 ft).

Optional characteristics

  • Halogen free
  • Flame-retardant
  • UV-resistant
  • Cold-resistant and weatherproof for outdoor applications
  • High mechanical strength
  • VDE, UL and CSA approval
  • with single- or multimode fibers

These are some examples of our hybrid cables:

Order numberL45466-D313-W36L46910-L2-H46L45467-J216-W15
Type designation2Y(ST)CH 0.45/2.8-75 LI VZN
LIH CH 2X0.75/1.9 VZN FRNC
I-V(ZN)H 2X1G62.5/125
L-Y CY 3X1X2.5
9Y(ST)C 4X2X0.5/0.98-100 LI
LI9Y (ST)CY 3X1X2.5
Jacket materialFRNCPVCPVC
Mechanical Properties
Outer diameter8.0 mm (0.315 in)12.6 mm (0.496 in)9.9 mm (0.390 in)
Weight93 kg/km (62 lb/1000 ft)218 kg/km (146 lb/1000 ft) 233 kg/km (160 lb/1000 ft)
Permissible temperature range– 40 °C up to 80 °C (– 40 °F up to 176 °F)– 40 °C up to 80 °C (– 40 °F up to 176 °F)– 40 °C up to 80 °C (– 40 °F up to 176 °F)
Optical properties
Fiber Multimode G62.5/125
Attenuation max. 850nm 3.2 db/km
1300nm 0.9 db/km
Electrical properties
Impedance(75 ± 5) Ohm (100 ± 15) Ohm
Capacity67 nF/km 48 nF/km
NEXT 1 MHz  65.3 dB
Attenuation values32 dB/100 m (at 400 MHz) 32 dB/100 m (at 100 MHz)
Characteristics and standards
  • jacket material acc. to DIN EN 50290-2-27 (HD 624.7)
  • flame retardant acc. to IEC 60332-3-24 (Cat. C)
  • UV-resistant
  • RoHs compliant
  • UL-Style 2464 (80 °C/300 V)
  • UV-resistant
  • RoHS compliant
  • electrical requirements similar to EN 50288-2-2 Cat 5e
  • jacket material acc. to DIN EN 50290-2-22 (VDE 0819)
  • UV-resistant
  • RoHS compliant
