FlexLine coaxial cables
Construction
| Type of cable | Inner conductor | Dielectric | OHM |
|---|---|---|---|
| RG 6 | 0.74 | 4.8 | 75 |
| RG 8 | 2.25 | 7.25 | 50 |
| RG 11 | 11.2 | 7.25 | 75 |
| RG 58 | 0.9 | 2.95 | 50 |
| RG 59 | 0.6 | 3.7 | 75 |
| RG 174 | 0.48 | 1.5 | 50 |
| RG 178 | 0.3 | 0.88 | 50 |
| RG 179 | 0.32 | 1.6 | 75 |
| RG 213 | 2.25 | 7.25 | 50 |
| RG 214 | 2.25 | 7.25 | 50 |
| RG 223 | 0.89 | 2.95 | 50 |
| RG 316 | 0.54 | 1.5 | 50 |

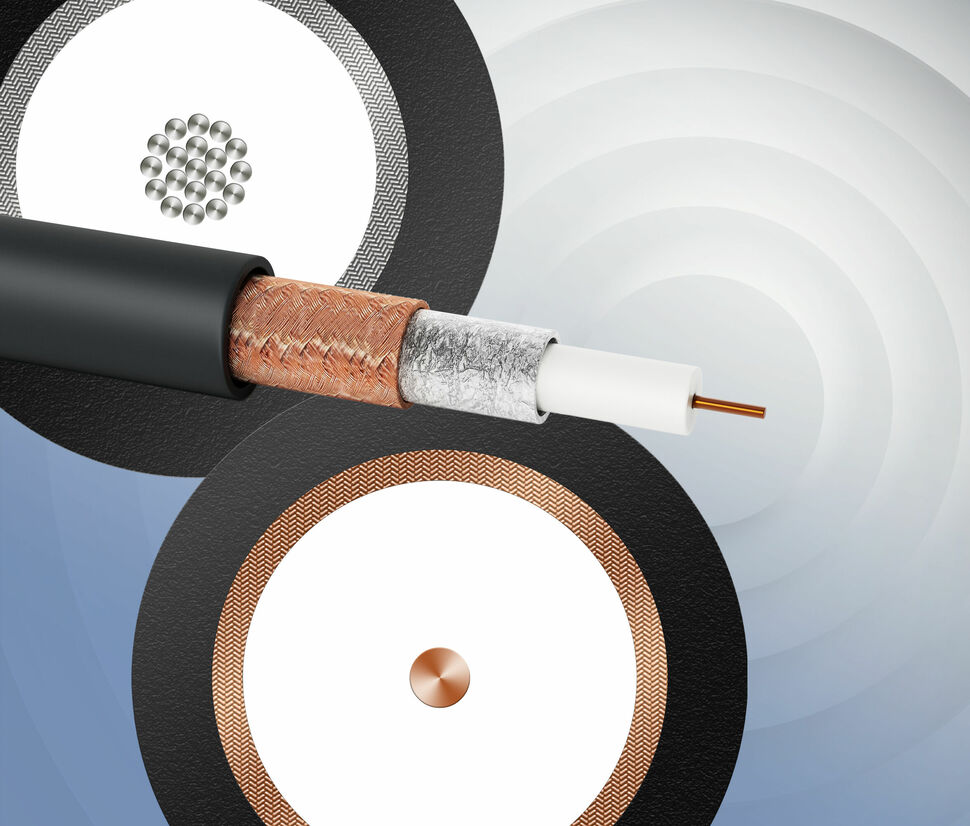

FlexLine® coaxial cables
We develop and manufacture coaxial and multi coaxial cables for a wide range of applications in telecommunications (e.g. microwave technology, UMTS, LTE). Data and signals can be transmitted without interference in a variety of frequency ranges.
Our coaxial cables feature excellent electromagnetic shielding and a uniform foaming of the dielectric. One of our specialities is our unique skin-foam-skin extrusion.
In addition to customized product solutions, our product portfolio also contains:
- Single shielded coaxial cable with foil
- Single shielded coaxial cable without foil
- Coaxial cable with foil, double shielded
- Double shielded coaxial cable with foil
- Coaxial cable with corrugated copper jacket and foamed dielectric
Optional characteristics
- Low attenuation
- Highly flexible
- Flame resistant and halogen free (LSZH)
- Different RG types available
- For indoor and outdoor use
- VDE, UL and CSA approval
- Small outer diameter
